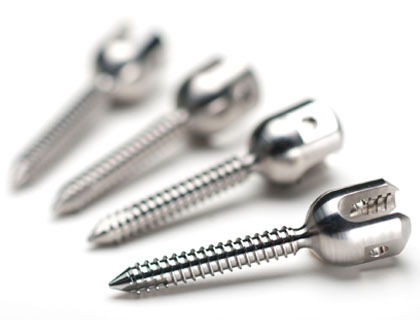

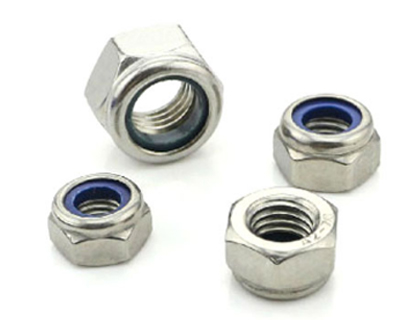

Alloy Steel AISI 4130 Fasteners
Our Fasteners Products:
Specifications
| Standard | ASTM A193, ASTM A194 / ASME SA193, SA194 GR, IS, BS |
| Specification | IS, BS, ASTM |
| Size | M 02 to M 160 |
| Length | UPTO 5 METERS |
| Grade | B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Type | Bolts, nuts, Washers, Anchor Fasteners, Stud Bolts, Eye Bolt, Stud, Threaded Rod, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, etc. |
Chemical Composition
Fe
97.03 – 98.22
Iron
Cr
0.80 – 1.10
Chromium
Mn
0.40 – 0.60
Manganese
C
0.280 – 0.330
Carbon
Si
0.15 – 0.30
Silicon
Mo
0.15 – 0.25
Molybdenum
S
0.040
Sulfur
P
0.035
Phosphorus
Equivalent Grades
STANDARD
AISI 4130
Standard
WERKSTOFF NR.
1.7218
Werkstoff Number
UNS
G41300
UNS
Physical Properties
7.85 g/cm³
Density (Metric)
0.284 lb/in³
Density (Imperial)
1432°C
Melting Point (Metric)
2610°F
Melting Point (Imperial)
Mechanical Properties
560 MPa / 81200 psi
Tensile Strength, Ultimate
460 MPa / 66700 psi
Tensile Strength, Yield
190 – 210 GPa / 27557 – 30458 ksi
Modulus of Elasticity
140 GPa / 20300 ksi
Bulk Modulus
80 GPa / 11600 ksi
Shear Modulus
0.27 – 0.30
Poisson's Ratio
21.50%
Elongation at Break (in 50 mm)
59.6%
Reduction of Area
217
Hardness, Brinell
240
Hardness, Knoop
95
Hardness, Rockwell B
17
Hardness, Rockwell C
228
Hardness, Vickers
70
Machinability (Annealed & cold drawn, AISI 1212 = 100)
Thermal Properties
42.7 W/mK
Thermal Conductivity at 100°C (Metric)
296 BTU in/hr.ft².°F
Thermal Conductivity at 100°C (Imperial)
Availability of Alloy Steel AISI 4130 Fasteners
| Alloy Steel AISI 4130 Fasteners | AISI 4130 Alloy Bolts |
| Steel AISI 4130 Nuts | UNS G41300 Screws |
| Alloy AISI 4130 Sockets | AISI 4130 Steel Studs |
| AISI 4130 Alloy Steel Hex Head Bolts | Alloy Hex AISI 4130 Set Screw |
| UNS G41300 Socket Screw | AISI 4130 Alloy Steel Cap Screw |
| AISI 4130 Alloy Machine Screw | Steel AISI 4130 Socket Head Cap Screw |
| Alloy Steel AISI 4130 Allen Cap Screw | UNS G41300 Pan Head Screw |
| AISI 4130 Steel Wing Screw | AISI 4130 Alloy Steel Washers |
| UNS G41300 Spring Washers | Steel AISI 4130 Anchor Bolt |
| Alloy Steel AISI 4130 Structural Bolts | AISI 4130 Alloy Marine Anchor Bolt |
| Steel AISI 4130 Hex Set Screw | UNS G41300 Hexagon Nut |
| Alloy Steel AISI 4130 Hex Nut | AISI 4130 Steel Hex Coupling Nut |
| Alloy Steel AISI 4130 Hex Domed Cap Nuts | Alloy AISI 4130 Square Nut |
| UNS G41300 Stud Bolts | AISI 4130 Alloy Socket Hexagon Head Screw Anchor Bolt |
| Alloy Steel AISI 4130 U-Bolts | AISI 4130 Steel J Bolts |
| Alloy Mushroom Head Square Neck Bolts | AISI 4130 Alloy Steel T-Head Bolts |
| Steel AISI 4130 Wing Screw | UNS G41300 Eye Bolt |
| Alloy AISI 4130 Foundation Bolts |
Availability of Alloy Steel Fasteners
| Alloy Steel AISI 4130 Fasteners | Alloy Steel AISI 4140 Fasteners |
| Alloy Steel AISI 4340 Fasteners | Alloy Steel AISI 8620 Fasteners |
| Alloy Steel AISI 8740 Fasteners | Alloy Steel ASTM A193 Grade B7 Fasteners |
| Alloy Steel ASTM A193 Grade BM7 Fasteners | Alloy Steel ASTM A193 Grade B16 Fasteners |
| Alloy Steel ASTM A194 Grade 4 Fasteners | Alloy Steel ASTM A194 Grade 7 Fasteners |
| Alloy Steel ASTM A194 Grade 7M Fasteners | Alloy Steel ASTM A194 Grade 16 Fasteners |
| Alloy Steel ASTM A320 Grade L7 Fasteners | Alloy Steel SAE J429 Grade 8 Fasteners |
Availability of Alloy Steel AISI 4130 Nuts
| AISI 4130 Alloy Steel Hex Nuts | UNS G41300 Dome Nuts | Alloy AISI 4130 Hex Machine Screw Nuts |
| AISI 4130 Alloy Steel Hex Lock Nuts Nylon Insert | UNS G41300 Hex Jam Nuts | Alloy AISI 4130 Hex Jam Nylon Lock Nuts |
| AISI 4130 Alloy Steel Heavy Hex Nuts | UNS G41300 Wing Nuts | Alloy AISI 4130 Cap Nuts |
| AISI 4130 Alloy Steel Acorn Nuts | UNS G41300 Square Nuts | Alloy AISI 4130 K-Lock Nuts |
| AISI 4130 Alloy Steel Prevailing Torque Lock Nuts | UNS G41300 Top Lock Nuts | Alloy AISI 4130 Two-Way Reversible Lock Nuts |
| AISI 4130 Alloy Steel Pin-Lock Nuts | UNS G41300 T-Nuts | Alloy AISI 4130 Coupling Nuts |
| AISI 4130 Alloy Steel T-Slot Nuts | UNS G41300 Castle Nuts | Alloy AISI 4130 Knurled Nuts |
Availability of Alloy Steel AISI 4130 Bolts
| Alloy Steel AISI 4130 Eye Bolts | AISI 4130 Steel Allen Bolts | UNS G41300 Hex Head Bolts |
| Alloy Steel AISI 4130 Hanger Bolts | AISI 4130 Steel Carriage Bolts | UNS G41300 Jack Bolts |
| Alloy Steel AISI 4130 Square Head Bolts | AISI 4130 Steel Lag Bolts | UNS G41300 U Bolts |
| Alloy Steel AISI 4130 Elevator Bolts | AISI 4130 Steel Turned Eye Bolts | UNS G41300 Hex Flange Bolts |
| Alloy Steel AISI 4130 Structural Bolts | AISI 4130 Steel Step Bolts | UNS G41300 Square Head Machine Bolts |
| Alloy Steel AISI 4130 Plow Bolts | AISI 4130 Steel Metric Bolts | UNS G41300 Hex Tap Bolts |
| Alloy Steel AISI 4130 Hex Machine Bolts | AISI 4130 Steel Shoulder Eye Bolts | UNS G41300 Hex Bolts |
Availability of Alloy Steel AISI 4130 Screws
| UNS G41300 Self Drilling Screw | Steel AISI 4130 Self Tapping Screw | AISI 4130 Alloy Thread Rolling Screw |
| UNS G41300 Thread Cutting Screw | Steel AISI 4130 Machine Screw | AISI 4130 Alloy Concrete Screw |
| UNS G41300 Roofing Screw | Steel AISI 4130 Drywall Screw | AISI 4130 Alloy Particle Board Screw |
| UNS G41300 Chipboard Screw | Steel AISI 4130 Construction Screws | AISI 4130 Alloy Coach Screws |
| UNS G41300 Lag Screws | Steel AISI 4130 Wood Screw | AISI 4130 Alloy Euro Screw |
| UNS G41300 Collated Screw | Steel AISI 4130 Furniture Screw | AISI 4130 Alloy Sems Screw |
| UNS G41300 AISI 4130 Phillips Head Screw | Steel AISI 4130 Set Screws | AISI 4130 Alloy Thumb Screws |
Availability of Alloy Steel AISI 4130 Washers
| AISI 4130 Alloy Steel Flat Washers | UNS G41300 Finishing Washers | Alloy AISI 4130 Tab Washers |
| Alloy Steel AISI 4130 Conical Washers | AISI 4130 Steel Special Washers | UNS G41300 Belleville Washers |
| UNS G41300 Bonded Sealing Washers | Steel AISI 4130 Countersunk Finishing Washers | AISI 4130 Alloy Dock Washers |
| AISI 4130 Alloy Steel Fender Washers | UNS G41300 Lock Washers | Alloy AISI 4130 Neoprene Washers |
| Alloy Steel AISI 4130 Square Bevel Washers | AISI 4130 Steel Star Washers | UNS G41300 Spring Washers |
| UNS G41300 Plain Washers | Steel AISI 4130 Hex Washers | AISI 4130 Alloy Wave Washers |
| AISI 4130 Alloy Steel Crank Washers | UNS G41300 Square Washers | Alloy AISI 4130 Star Lock Washers |
Alloy Steel AISI 4130 Fasteners Applications
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
