Incoloy 800 Round Bar Supplier
Buy Incoloy 800 Round Bars as per ASTM B408 & EN X10NiCrAlTi32-20 — Multinox Inc, Trusted Manufacturer & Global Stockist.
Available Forms & Types
Most Common

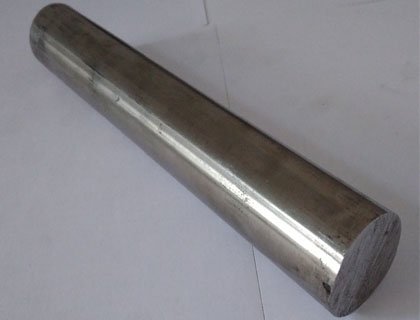

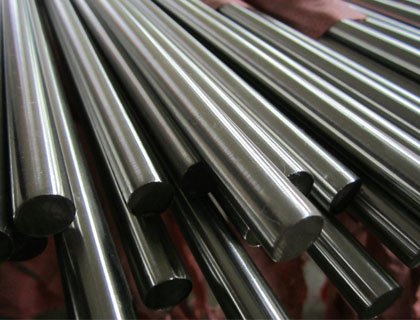

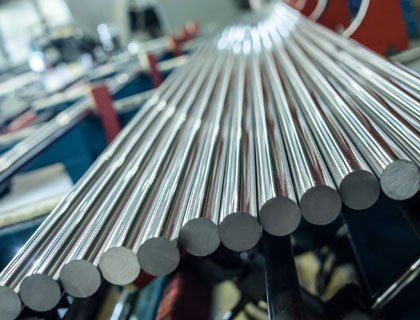

Round Bars
Cold drawn, centreless ground & polished. Used in shafts, fasteners, machined components.
- OD: 4mm to 500mm
- Bright / Polish / Black finish
- Length: 1–6 metres
Precision
Hex Bars
Across-flat 18mm–57mm. Ideal for bolt, nut & valve body machining applications.
- 18mm – 57mm A/F
- Cold drawn condition
- Non-magnetic grade
Structural
Square Bars
Used in structural fabrication, tooling and engineering. Custom sizes available.
- 18mm – 47mm
- Bright / Rough Turned
- Custom sizes on request
Wide Range
Flat Bars
Width ½" to 10", thickness 2mm to 150mm. Sheared & edged or hot-rolled condition.
- Width: ½" to 10"
- Thickness: 2–150mm
- Custom width available
Hollow
Hollow Bars
Seamless hollow bar for bushings, sleeves & valve bodies. Saves machining time.
- OD: 4mm to 100mm
- Various wall thickness
- Centreless ground
High Strength
Forged Bars
Hot forged for superior grain structure. Heavy-duty industrial and aerospace use.
- 15mm to 300mm
- Ultrasonic tested
- Rough turned finish
Diameter Range, Annealing Conditions & Certification Guide
Reformer tubes, sheaths, fasteners — Incoloy 800 Round Bars arrive cut-to-length under complete WNR 1.4876 documentation.
| Product Name | Incoloy 800 Round Bar |
| Material Grade | Incoloy Alloy 800 |
| UNS Number | N08800 |
| Werkstoff No. | 1.4876 |
| Specifications | ASTM B408 / ASME SB408 |
| Standards | ASTM, ASME, DIN, EN, JIS |
| Diameter | 3 mm to 500 mm |
| Length | 1000 mm to 6000 mm, Custom Cut Length |
| Condition | Hot Rolled, Cold Drawn, Forged, Annealed |
| Surface Finish | Black, Bright, Polished, Rough Turned, Peeled |
| Forms | Round, Square, Hexagonal, Flat, Billet, Forged |
| Tolerance | h8, h9, h10, h11 or as per customer requirement |
| End Finish | Plain End, Beveled End |
| Test Certificate | EN 10204 3.1, NABL Approved Laboratory Report |
| Origin | Indian, European, Japanese & USA Mill |
Incoloy 800 Round Bar — Chemical Composition
Chromium forms the oxidation shield on Incoloy 800 Round Bars, aluminium and titanium fine-tune the grain structure.
Ni
30.00 – 35.00%
Nickel
Cr
19.00 – 23.00%
Chromium
Fe
39.50 Min
Iron
C
0.10 Max
Carbon
Mn
1.50 Max
Manganese
Si
1.00 Max
Silicon
S
0.015 Max
Sulphur
Cu
0.75 Max
Copper
Al
0.15 – 0.60%
Aluminium
Ti
0.15 – 0.60%
Titanium
view Equivalent Grades of UNS N08800 Round Bar
Global buyers trust Incoloy 800 Round Bars because its equivalents are recognised in every major procurement system.
UNS
N08800
Unified Numbering System
Werkstoff
1.4876
Werkstoff Number
EN
X10NiCrAlTi32-20
European Standard
AFNOR
NC32FeTiAl
French Standard
JIS
NCF 800
Japanese Industrial Standard
ISO
NW 8800
International Standard
WNR 1.4876 Round Bar Mechanical Properties
Incoloy 800 Round Bars resist thermal fatigue through constant heating cycles — dimensions stay true, performance stays predictable.
| Property | Value |
|---|---|
| Density | 7.94 g/cm³ |
| Melting Range | 1357 – 1385°C |
| Tensile Strength | ≥ 520 MPa |
| Yield Strength (0.2% Offset) | ≥ 205 MPa |
| Elongation | ≥ 30% |
| Hardness | HRB 70–90 (Approx.) |
| Modulus of Elasticity | 196 GPa |
| Electrical Resistivity | 0.989 µΩ·m |
check the EN X10NiCrAlTi32-20 Round Bar Weight Chart
| Diameter (mm) | Weight (Kg/Meter) |
|---|---|
| 6 | 0.22 |
| 8 | 0.40 |
| 10 | 0.62 |
| 12 | 0.89 |
| 16 | 1.59 |
| 20 | 2.49 |
| 25 | 3.89 |
| 30 | 5.60 |
| 40 | 9.95 |
| 50 | 15.55 |
| 60 | 22.40 |
| 65 | 26.30 |
| 75 | 35.00 |
| 80 | 39.80 |
| 90 | 50.40 |
| 100 | 62.35 |
| 125 | 97.40 |
| 150 | 140.30 |
| 200 | 249.40 |
Incoloy 800 Round Bar Size Range
| Product Form | Available Size |
|---|---|
| Round Bar | 3 mm – 500 mm Diameter |
| Square Bar | 10 mm – 100 mm |
| Hex Bar | 10 mm – 100 mm |
| Flat Bar | 10 x 3 mm to 200 x 50 mm |
| Forged Bar | Up to 500 mm Diameter |
| Length | 1 Meter, 3 Meter, 6 Meter & Custom Cut Length |
| Finish | Black, Bright, Polished, Peeled, Rough Turned |
| Available Shape | Round, Square, Hexagonal, Flat |
Recent ASTM B408 Incoloy 800 Round Bar Export Deliveries
🇸🇦
Saudi Aramco Total
Al Jubail, Saudi Arabia
30mm Diameter Bright Bars, Incoloy 800
Delivered in 7 days
🇺🇸
Hess Corporation
New York City, USA
UNS N08800 Peeled Bars, 60mm Diameter
Delivered in 14 days
🇬🇧
Shell PLC
London, United Kingdom
EN X10NiCrAlTi32-20 Polished Bars, 25mm Diameter
Delivered in 14 days
🇦🇪
ADNOC
Abu Dhabi, UAE
Cold Drawn Bars, 18mm Diameter, Incoloy 800
Delivered in 5 days
🇿🇦
Sasol Limited
Johannesburg, South Africa
100–200mm Diameter Hot Rolled Bars, Incoloy 800
Delivered in 21 days
🇩🇪
BASF SE
Ludwigshafen, Germany
WNR 1.4876 Turned Bars, 40–90mm Diameter
Delivered in 18 days
Availability of UNS N08800 Round Bar
| Incoloy 800 Bright Round Bar | UNS N08800 Black Round Bar |
| WNR 1.4876 Polished Round Bar | EN X10NiCrAlTi32-20 Peeled Round Bar |
| ASTM B408 Incoloy 800 Turned Round Bar | Incoloy 800 Ground Round Bar |
| UNS N08800 Hot Rolled Round Bar | WNR 1.4876 Cold Drawn Round Bar |
| EN X10NiCrAlTi32-20 Bright Round Bar | ASTM B408 Incoloy 800 Black Round Bar |
| Incoloy 800 Polished Round Bar | UNS N08800 Peeled Round Bar |
| WNR 1.4876 Turned Round Bar | EN X10NiCrAlTi32-20 Ground Round Bar |
| ASTM B408 Incoloy 800 Hot Rolled Round Bar | Incoloy 800 Cold Drawn Round Bar |
| UNS N08800 Bright Round Bar | WNR 1.4876 Black Round Bar |
| EN X10NiCrAlTi32-20 Polished Round Bar | Incoloy 800 Peeled Round Bar |
Latest Prices of WNR 1.4876 Round Bars
Multinox INC offers EN X10NiCrAlTi32-20 Round Bars at one of the most competitive prices in India. Request the latest Pricelist using the contact form here.
