Alloy 20 Round Bars
Alloy 20 Round Bars — EN NiCr20CuMo Compliant — The Pump & Valve Industry's Favourite — Supplied by Multinox Inc.

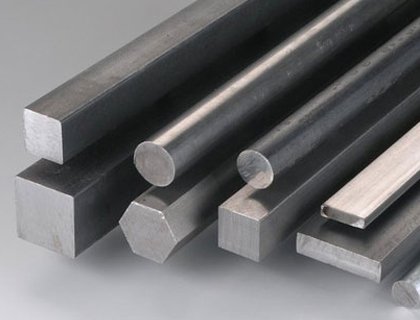

Available Forms & Types
Most Common

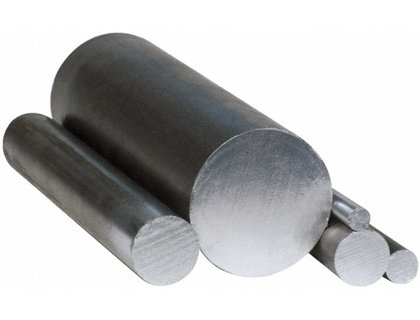

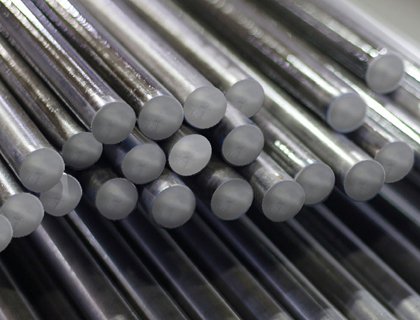

Round Bars
Cold drawn, centreless ground & polished. Used in shafts, fasteners, machined components.
- OD: 4mm to 500mm
- Bright / Polish / Black finish
- Length: 1–6 metres
Precision
Hex Bars
Across-flat 18mm–57mm. Ideal for bolt, nut & valve body machining applications.
- 18mm – 57mm A/F
- Cold drawn condition
- Non-magnetic grade
Structural
Square Bars
Used in structural fabrication, tooling and engineering. Custom sizes available.
- 18mm – 47mm
- Bright / Rough Turned
- Custom sizes on request
Wide Range
Flat Bars
Width ½" to 10", thickness 2mm to 150mm. Sheared & edged or hot-rolled condition.
- Width: ½" to 10"
- Thickness: 2–150mm
- Custom width available
Hollow
Hollow Bars
Seamless hollow bar for bushings, sleeves & valve bodies. Saves machining time.
- OD: 4mm to 100mm
- Various wall thickness
- Centreless ground
High Strength
Forged Bars
Hot forged for superior grain structure. Heavy-duty industrial and aerospace use.
- 15mm to 300mm
- Ultrasonic tested
- Rough turned finish
View UNS N08020 Round Bar Specifications
Alloy 20 Round Bars are supplied in annealed condition, each bar certified under UNS N08020 with complete test reports.
| Product Name | Alloy 20 Round Bar |
| Material Grade | Alloy 20 (Carpenter 20 CB-3®) |
| UNS Number | N08020 |
| Werkstoff No. | 2.4660 |
| Specifications | ASTM B473 / ASME SB473 |
| Standards | ASTM, ASME, DIN, EN, JIS, ISO |
| Diameter | 5 mm to 500 mm |
| Length | 100 mm to 6000 mm, Custom Cut Length |
| Condition | Hot Rolled, Cold Drawn, Annealed, Bright Drawn |
| Surface Finish | Black, Bright Polished, Rough Turned, No.4 Finish, BA Finish |
| Forms | Round, Square, Hexagonal, Flat, Rectangle, Billet, Forged |
| Tolerance | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per customer requirement |
| Test Certificate | EN 10204 3.1, Mill Test Certificate (MTC), PMI Test, Third Party Inspection |
WNR 2.466 Round Bar — Chemical Composition
The balanced chemistry of Alloy 20 Round Bars was designed specifically for sulphuric acid environments at every concentration.
Ni
32.00 – 38.00%
Nickel
Cr
19.00 – 21.00%
Chromium
Cu
3.00 – 4.00%
Copper
Mo
2.00 – 3.00%
Molybdenum
Fe
Balance
Iron
Mn
1.00 – 2.00%
Manganese
Si
0.70 Max
Silicon
C
0.02 Max
Carbon
S
0.005 Max
Sulphur
EN NiCr20CuMo Round Bar Equivalent Grades
Global buyers specify Alloy 20 Round Bars confidently because its UNS and WNR identities are recognised everywhere.
W-Nr
2.4660
Werkstoff Number
UNS
N08020
Unified Numbering System
EN
NiCr20CuMo
European Standard
AFNOR
Z2NCUD31-20AZ
French Standard
Alloy 20 Round Bar Mechanical Properties
From pump shafts to fasteners, Alloy 20 Round Bars hold their tensile and yield values under continuous mechanical stress.
| Property | Value |
|---|---|
| Density | 8.10 g/cm³ |
| Melting Point | 1443°C (2430°F) |
| Tensile Strength | 551 MPa (80 ksi) |
| Yield Strength (0.2% Offset) | 241 MPa (35 ksi) |
| Elongation | 30% |
| Hardness | 217 HB Max |
| Modulus of Elasticity | 195 GPa |
| Thermal Conductivity | 11.5 W/m·K |
| Electrical Resistivity | 0.98 µΩ·m |
Weight Chart of UNS N08020 Round Bar
| Diameter (mm) | Weight (Kg/Meter) |
|---|---|
| 6 | 0.23 |
| 8 | 0.41 |
| 10 | 0.64 |
| 12 | 0.92 |
| 16 | 1.64 |
| 20 | 2.55 |
| 25 | 3.99 |
| 30 | 5.74 |
| 40 | 10.20 |
| 50 | 15.94 |
| 60 | 22.95 |
| 75 | 35.86 |
| 100 | 63.76 |
WNR 2.466 Round Bar Size Range
| Product Form | Available Size |
|---|---|
| Round Bar | 5 mm – 500 mm Diameter |
| Square Bar | 5 mm – 100 mm |
| Hex Bar | 5 mm – 100 mm |
| Flat Bar | 3 mm – 100 mm Width |
| Forged Bar | Up to 500 mm Diameter |
| Length | 100 mm, 1 Meter, 3 Meter, 6 Meter & Custom Cut Length |
| Available Shapes | Round, Square, Hexagonal, Flat, Rectangle, Billet, Forged |
Recent UNS N08020 Alloy 20 Round Bar Export Deliveries
🇸🇦
Saudi Aramco Total
Al Jubail, Saudi Arabia
25mm Diameter Bright Bars, Alloy 20
Delivered in 7 days
🇺🇸
Hess Corporation
New York City, USA
UNS N08020 Peeled Bars, 50mm Diameter
Delivered in 14 days
🇬🇧
Shell PLC
London, United Kingdom
EN NiCr20CuMo Polished Bars, 20mm Diameter
Delivered in 14 days
🇦🇪
ADNOC
Abu Dhabi, UAE
Cold Drawn Bars, 16mm Diameter, Alloy 20
Delivered in 5 days
🇿🇦
Sasol Limited
Johannesburg, South Africa
100–200mm Diameter Hot Rolled Bars, Alloy 20
Delivered in 21 days
🇩🇪
BASF SE
Ludwigshafen, Germany
WNR 2.466 Turned Bars, 40–80mm Diameter
Delivered in 18 days
Availability stock of Aluminum 1050 Sheet & Plate
| Alloy 20 Bright Round Bar | UNS N08020 Black Round Bar |
| WNR 2.466 Polished Round Bar | EN NiCr20CuMo Peeled Round Bar |
| Alloy 20 Turned Round Bar | UNS N08020 Ground Round Bar |
| WNR 2.466 Hot Rolled Round Bar | EN NiCr20CuMo Cold Drawn Round Bar |
| UNS N08020 Bright Round Bar | WNR 2.466 Black Round Bar |
| EN NiCr20CuMo Polished Round Bar | Alloy 20 Peeled Round Bar |
| UNS N08020 Turned Round Bar | WNR 2.466 Ground Round Bar |
| EN NiCr20CuMo Hot Rolled Round Bar | Alloy 20 Cold Drawn Round Bar |
| WNR 2.466 Bright Round Bar | UNS N08020 Polished Round Bar |
| Alloy 20 Peeled Round Bar | EN NiCr20CuMo Black Round Bar |
UNS N08020 Round Bar Latest Prices
Multinox INC offers WNR 2.466 Round Bar at one of the most competitive prices in India. Request the latest Pricelist using the contact form here.
