AMS 4928 Titanium Grade 5 Round Bar Supplier
Buy AMS 4928 Titanium Grade 5 Round Bar with Full Heat-Number Traceability — Multinox Inc, the Stockist & Supplier Trusted Across Continents.
Available Forms & Types
Most Common

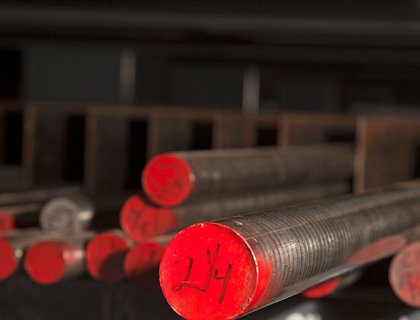

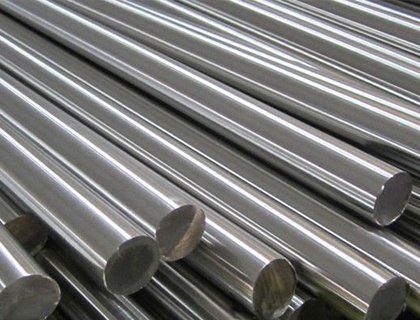

Round Bars
Cold drawn, centreless ground & polished. Used in shafts, fasteners, machined components.
- OD: 4mm to 500mm
- Bright / Polish / Black finish
- Length: 1–6 metres
Precision
Hex Bars
Across-flat 18mm–57mm. Ideal for bolt, nut & valve body machining applications.
- 18mm – 57mm A/F
- Cold drawn condition
- Non-magnetic grade
Structural
Square Bars
Used in structural fabrication, tooling and engineering. Custom sizes available.
- 18mm – 47mm
- Bright / Rough Turned
- Custom sizes on request
Wide Range
Flat Bars
Width ½" to 10", thickness 2mm to 150mm. Sheared & edged or hot-rolled condition.
- Width: ½" to 10"
- Thickness: 2–150mm
- Custom width available
Hollow
Hollow Bars
Seamless hollow bar for bushings, sleeves & valve bodies. Saves machining time.
- OD: 4mm to 100mm
- Various wall thickness
- Centreless ground
High Strength
Forged Bars
Hot forged for superior grain structure. Heavy-duty industrial and aerospace use.
- 15mm to 300mm
- Ultrasonic tested
- Rough turned finish
ASTM B348 Titanium Grade 5 Round Bar — Specifications
Saw-cut to your exact length or supplied in standard mill lengths — Titanium Grade 5 Round Bar arrives production-ready.
| Specifications | ASTM B348 / ASME SB348 / AMS 4928 |
| Standards | ASTM, ASME, DIN, EN, JIS, ISO |
| Diameter | 3 mm to 500 mm |
| Length | 100 mm to 6000 mm, Custom Cut Length |
| Condition | Hot Rolled, Cold Drawn, Annealed, Forged |
| Surface Finish | Black, Bright, Polished, Rough Turned, Pickled |
| Forms | Round, Square, Hexagonal, Flat, Rectangle, Billet, Forged |
| Tolerance | H8-H13, K9-K12 or As Per Customer Requirement |
| Test Certificate | EN 10204 3.1, Mill Test Certificate, PMI Test, Third Party Inspection |
Check Chemical Composition — AMS 4928 Titanium Grade 5 Round Bar
Controlled interstitial levels keep Titanium Grade 5 Round Bar tough, ductile and consistently reliable batch after batch.
Ti
Balance
Titanium
Al
5.50 – 6.75%
Aluminium
V
3.50 – 4.50%
Vanadium
Fe
0.25 Max
Iron
O
0.20 Max
Oxygen
C
0.08 Max
Carbon
N
0.05 Max
Nitrogen
H
0.015 Max
Hydrogen
Titanium Grade 5 Round Bar Equivalent Grades
Titanium Grade 5 Round Bar's internationally documented equivalents make cross-border approvals fast and friction-free.
ASTM
Grade 5
ASTM Standard
UNS
R56400
Unified Numbering System
W-Nr
3.7165
Werkstoff Number
Trade
Ti-6Al-4V
Trade Name
AMS
4928
Aerospace Material Specification
ISO
Titanium Grade 5
International Standard
WNR 3.7165 Titanium Grade 5 Round Bar Mechanical Properties
From landing gear components to racing drivetrain parts, Titanium Grade 5 Round Bar delivers where weight savings mean everything.
| Property | Value |
|---|---|
| Density | 4.43 g/cm³ |
| Melting Point | 1632 – 1660°C |
| Tensile Strength | 950 MPa Min |
| Yield Strength (0.2% Offset) | 880 MPa Min |
| Elongation | 14% Min |
| Hardness | 36 HRC (Approx.) |
| Modulus of Elasticity | 114 GPa |
| Thermal Conductivity | 6.7 W/m·K |
| Electrical Resistivity | 1.71 µΩ·m |
Weight Chart of AMS 4928 Titanium Grade 5 Round Bar
| Diameter (mm) | Weight (Kg/Meter) |
|---|---|
| 6 | 0.13 |
| 8 | 0.22 |
| 10 | 0.35 |
| 12 | 0.50 |
| 16 | 0.89 |
| 20 | 1.39 |
| 25 | 2.17 |
| 30 | 3.13 |
| 40 | 5.57 |
| 50 | 8.70 |
| 60 | 12.53 |
| 75 | 19.58 |
| 100 | 34.80 |
View UNS R56400 Titanium Grade 5 Round Bar Size Range
| Product Form | Available Size |
|---|---|
| Round Bar | 3 mm – 500 mm Diameter |
| Square Bar | 5 mm – 100 mm |
| Hex Bar | 5 mm – 100 mm |
| Flat Bar | 3 mm – 100 mm Width |
| Forged Bar | Up to 500 mm Diameter |
| Length | 100 mm, 1 Meter, 3 Meter, 6 Meter & Custom Cut Length |
| Available Shapes | Round, Square, Hexagonal, Flat, Rectangle, Billet, Forged |
Recent ASTM B348 Titanium Grade 5 Round Bar Export Deliveries
🇺🇸
Hess Corporation
New York City, USA
UNS R56400 Round Bars, 25mm Diameter, 3m Length
Delivered in 12 days
🇩🇪
BASF SE
Ludwigshafen, Germany
WNR 3.7165 Bright Round Bars, 16mm Diameter
Delivered in 21 days
🇫🇷
TotalEnergies
Paris, France
AMS 4928 Certified Round Bars, 40mm Diameter
Delivered in 9 days
🇯🇵
Mitsubishi Corporation
Tokyo, Japan
Polished Round Bars, 20mm Diameter, Titanium Grade 5
Delivered in 10 days
🇮🇳
Reliance Industries
Jamnagar, India
Cut-to-Length Round Bars, 12mm Diameter, Titanium Grade 5
Delivered in 4 days
🇦🇪
ADNOC
Abu Dhabi, UAE
Custom Diameter Round Bars, 50–100mm, Titanium Grade 5
Delivered in 5 days
Stock Availability of UNS R56400 Titanium Grade 5 Round Bar
| ASTM B348 Titanium Grade 5 Hot Rolled Round Bar | UNS R56400 Bright Round Bar |
| WNR 3.7165 Cold Drawn Round Bar | Titanium Grade 5 Polished Round Bar |
| Titanium Grade 5 Peeled Round Bar | ASTM B348 Titanium Grade 5 Threaded Round Bar |
| Titanium Grade 5 Black Round Bar | AMS 4928 Titanium Grade 5 Ground Round Bar |
| WNR 3.7165 Forged Round Bar | UNS R56400 Custom Cut Round Bar |
| UNS R56400 Hot Rolled Round Bar | ASTM B348 Titanium Grade 5 Bright Round Bar |
| Titanium Grade 5 Cold Drawn Round Bar | WNR 3.7165 Polished Round Bar |
| AMS 4928 Titanium Grade 5 Threaded Round Bar | Titanium Grade 5 Peeled Round Bar |
| ASTM B348 Titanium Grade 5 Ground Round Bar | UNS R56400 Black Round Bar |
| WNR 3.7165 Custom Cut Round Bar | UNS R56400 Forged Round Bar |
UNS R56400 Titanium Grade 5 Round Bar Latest Prices
Multinox INC offers ASTM B348 Titanium Grade 5 Round Bars at one of the most competitive prices in India. Request the latest Pricelist using the contact form here.
