Super Duplex 32750 Round Bar Supplier
Multinox Inc — Supplier & Manufacturer of WNR 1.4410 Super Duplex S32750 Round Bar, Where SAF 2507 Strength Meets Stainless-Grade Economy.
Available Forms & Types
Most Common

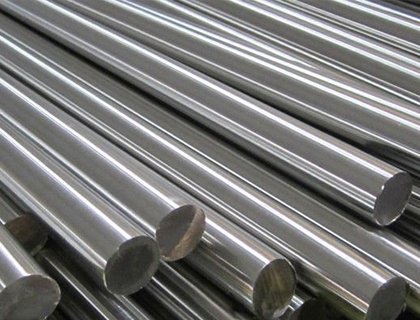

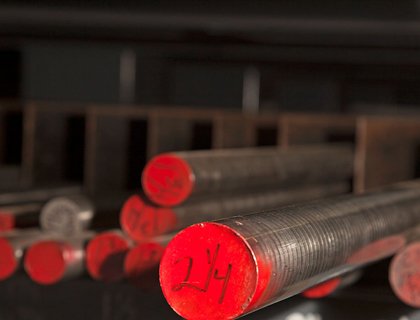

Round Bars
Cold drawn, centreless ground & polished. Used in shafts, fasteners, machined components.
- OD: 4mm to 500mm
- Bright / Polish / Black finish
- Length: 1–6 metres
Precision
Hex Bars
Across-flat 18mm–57mm. Ideal for bolt, nut & valve body machining applications.
- 18mm – 57mm A/F
- Cold drawn condition
- Non-magnetic grade
Structural
Square Bars
Used in structural fabrication, tooling and engineering. Custom sizes available.
- 18mm – 47mm
- Bright / Rough Turned
- Custom sizes on request
Wide Range
Flat Bars
Width ½" to 10", thickness 2mm to 150mm. Sheared & edged or hot-rolled condition.
- Width: ½" to 10"
- Thickness: 2–150mm
- Custom width available
Hollow
Hollow Bars
Seamless hollow bar for bushings, sleeves & valve bodies. Saves machining time.
- OD: 4mm to 100mm
- Various wall thickness
- Centreless ground
High Strength
Forged Bars
Hot forged for superior grain structure. Heavy-duty industrial and aerospace use.
- 15mm to 300mm
- Ultrasonic tested
- Rough turned finish
WNR 1.4410 Round Bar — Specifications
Super Duplex S32750 Round Bar is supplied solution annealed at the correct temperature — the condition that guarantees its full corrosion life.
| Super Duplex UNS S32750 Round Bar Specifications | |
|---|---|
| Product Name | Super Duplex UNS S32750 Round Bar |
| Grade | UNS S32750 / F53 / Alloy 2507 |
| Specifications | ASTM A276, ASTM A479, ASTM A182 F53 |
| Standards | ASME SA276, ASME SA479 |
| Diameter | 5 mm to 500 mm |
| Length | 1 Meter to 6 Meter, Custom Cut Length |
| Finish | Black, Bright, Peeled, Polished, Centerless Ground |
| Forms | Round, Square, Hex, Flat, Forged Bar |
| Condition | Hot Rolled, Cold Drawn, Annealed & Pickled |
| Inspection | PMI Test, Ultrasonic Test, Third Party Inspection |
| Mill Test Certificate | EN 10204 3.1 / 3.2 |
view SAF 2507 Round Bar Chemical Composition
Nitrogen in the composition of Super Duplex S32750 Round Bar stabilises the austenite — keeping the duplex phase balance exactly where it should be.
C
0.030 max
Carbon
Mn
1.00 max
Manganese
Si
1.00 max
Silicon
P
0.030 max
Phosphorus
S
0.010 max
Sulphur
Cr
24.00 – 26.00%
Chromium
Ni
6.00 – 8.00%
Nickel
Mo
3.00 – 4.00%
Molybdenum
Cu
0.50 – 1.00%
Copper
W
0.50 – 1.00%
Tungsten
N
0.20 – 0.30%
Nitrogen
Fe
Balance
Iron
check Equivalent Grades of WNR 1.4410 Round Bar
Super Duplex S32750 Round Bar clears approvals across American and European specification systems without a single cross-reference query.
UNS
S32760
UNS
WNR
1.4501
Werkstoff No.
EN
X2CrNiMoCuWN25-7-4
European Standard
ASTM
A182 F55
ASTM Forging Grade
Trade
Zeron® 100
Trade Name
AFNOR
Z3 CND 25-06 Az
French Standard
UNS S32750 Round Bar Mechanical Properties
Super Duplex S32750 Round Bar keeps fatigue resistance high in rotating equipment — shafts built from it outlast their predictions.
| Property | Value |
|---|---|
| Density | 7.80 g/cm³ |
| Melting Point | 1350°C |
| Tensile Strength | 795 MPa Min |
| Yield Strength (0.2% Proof) | 550 MPa Min |
| Elongation | 15% Min |
| Hardness | 310 HB Max |
| Modulus of Elasticity | 200 GPa |
SAF 2507 Round Bar Weight Chart
| Diameter (mm) | Weight (Kg/Mtr) |
|---|---|
| 6 | 0.22 |
| 8 | 0.39 |
| 10 | 0.62 |
| 12 | 0.89 |
| 16 | 1.58 |
| 20 | 2.47 |
| 25 | 3.85 |
| 30 | 5.55 |
| 40 | 9.87 |
| 50 | 15.42 |
| 60 | 22.20 |
| 75 | 34.68 |
| 100 | 61.68 |
check Size Range of WNR 1.4410 Round Bar
| Product Form | Available Size |
|---|---|
| Round Bar | 5 mm – 500 mm |
| Bright Bar | 5 mm – 100 mm |
| Black Bar | 16 mm – 500 mm |
| Square Bar | 8 mm – 100 mm |
| Hex Bar | 8 mm – 75 mm |
| Flat Bar | 20 × 3 mm – 200 × 50 mm |
| Forged Bar | 100 mm – 500 mm |
| Cut Length | As Per Customer Requirement |
Recent Super Duplex S32750 Round Bar Export Deliveries
🇸🇦
Saudi Aramco Total
Al Jubail, Saudi Arabia
ASTM A276 Bright Round Bars, 25mm Diameter
Delivered in 7 days
🇺🇸
Hess Corporation
New York City, USA
UNS S32750 Peeled & Turned Bars, 48mm
Delivered in 14 days
🇬🇧
Shell PLC
London, United Kingdom
SAF 2507 Polished Round Bars, 32mm
Delivered in 14 days
🇦🇪
ADNOC
Abu Dhabi, UAE
Alloy 2507 Cold Drawn Round Bars, 65mm
Delivered in 5 days
🇿🇦
Sasol Limited
Johannesburg, South Africa
ASME SA276 Centerless Ground Bars, 90mm
Delivered in 21 days
🇩🇪
BASF SE
Ludwigshafen, Germany
WNR 1.4410 Hot Rolled Black Bars, 55mm
Delivered in 18 days
Availability of UNS S32750 Round Bar
| Super Duplex S32750 Bright Round Bar | ASTM A276 Black Round Bar |
| UNS S32750 Polished Round Bar | SAF 2507 Peeled Round Bar |
| WNR 1.4410 Turned Round Bar | ASME SA276 Ground Round Bar |
| Alloy 2507 Cold Drawn Round Bar | Super Duplex S32750 Hot Rolled Round Bar |
| ASTM A276 Peeled & Polished Round Bar | UNS S32750 Centerless Ground Round Bar |
| SAF 2507 Bright Bar | WNR 1.4410 Black Bar |
| Super Duplex S32750 Polished Bar | ASME SA276 Peeled Bar |
| UNS S32750 Turned Bar | Alloy 2507 Ground Bar |
| WNR 1.4410 Cold Drawn Bar | SAF 2507 Hot Rolled Bar |
| ASME SA276 Peeled & Polished Bar | Super Duplex S32750 Centerless Ground Bar |
WNR 1.4410 Round Bar — Latest Prices
Multinox INC offers ASME SA276 Round Bars at one of the most competitive prices in India. Request the latest Pricelist using the contact form here.
