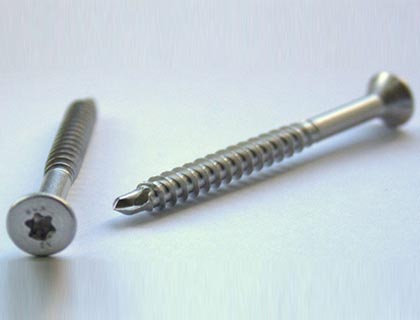

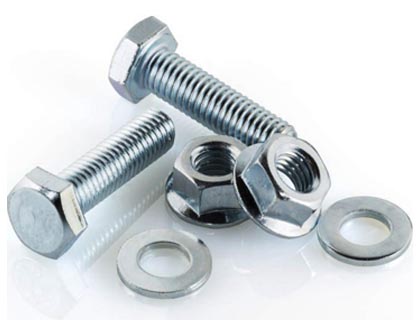

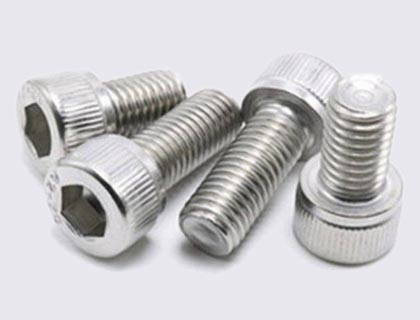

Incoloy 800 Fasteners
Multinox Inc has established itself as the market leader and is recognized for the top quality Incoloy Alloy 800 Fasteners which are available in several grades and materials. We supply high tensile and one of the top quality Incoloy 800 fasteners for Civil Construction, Petro Chemical Industry, Power and Energy sector, Gas & Pipeline Industry, Railway Fasteners, Aerospace, Engine, and Turbine Engineering industries, for example, aviation, squander handling, marine, and pharmaceutical industries.
We are committed to supply high-end Alloy 800 Fasteners which includes Incoloy Alloy 800 Bolts, Incoloy Alloy 800 Nuts, Incoloy Alloy 800 Washers, Incoloy Alloy 800 Anchor Fasteners, Incoloy 800 Stud Bolts, Incoloy 800 Eye Bolt, Stud, Incoloy 800 Screw, Threaded Rod, Cotter Pin, Socket Foundation Fasteners and many more. Please Contact us today to request a free estimate or send an enquiry with your specific Incoloy alloy fastener requirement.
Our Fasteners Products:
Specifications for Incoloy 800 Fasteners
| Specifications | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 |
| Standard | DIN, ASTM, BS and all International Standards |
| Size | M02 to M33 |
| Length | 3mm to 200mm |
| Grade | Incoloy 800, UNS N08800 |
| Type | Bolts, nuts, Washers, Anchor Fasteners, Stud Bolts, Eye Bolt, Stud, Threaded Rod, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, etc. |
Chemical Composition
Cr
19 – 23
Chromium
C
0.1 max
Carbon
Mn
1.5 max
Manganese
Si
1.0 max
Silicon
Cu
0.75 max
Copper
Ti
0.15 – 0.60
Titanium
Al
0.15 – 0.60
Aluminium
S
0.015 max
Sulfur
Ni
30 – 35
Nickel
Fe
39.5 min
Iron
Equivalent Grades
STANDARD
Incoloy 800
Standard
WERKSTOFF NR.
1.4876
Werkstoff Number
UNS
N08800
UNS
JIS
NCF 800
JIS
EN
X10NiCrAlTi32-20
EN
BS
NA 15
BS
GOST
ЭИ670
GOST
AFNOR
Z8NC33-21
AFNOR
OR
XH32T
OR
Mechanical Properties
75,000 Psi / 520 MPa
Tensile Strength
7.94 g/cm³
Density
1385 °C (2525 °F)
Melting Point
30,000 Psi / 205 MPa
Yield Strength (0.2% Offset)
30%
Elongation
Availability of Incoloy 800 Fasteners
| Incoloy 800 Fasteners | 800 Incoloy Bolts |
| ASTM B166 Nuts | UNS N08800 Screws |
| Incoloy 800 Sockets | 800 Incoloy Studs |
| ASTM B166 Hex Head Bolts | UNS N08800 Hex Set Screw |
| Incoloy 800 Socket Screw | 800 Incoloy Cap Screw |
| ASTM B166 Machine Screw | UNS N08800 Socket Head Cap Screw |
| Incoloy 800 Allen Cap screw | 800 Incoloy Pan Head Screw |
| UNS N08800 Wing Screw | 800 Incoloy Eye Bolt |
| ASTM B166 Washers | Incoloy 800 Spring Washers |
| 800 Incoloy Anchor Bolt | ASTM B166 Marine Anchor Bolt |
| Incoloy 800 Hex Set Screw | 800 Incoloy Hexagon Nut |
| ASTM B166 Hex Coupling Nut | Incoloy 800 Hex Domed Cap Nuts |
| 800 Incoloy Square Nut | UNS N08800 Stud Bolts |
| ASTM B166 Socket Hexagon Head Screw Anchor Bolt | Incoloy 800 U- Bolts |
| ASTM B166 Hex Nut | 800 Incoloy J Bolts |
| UNS N08800 Mushroom Head Square Neck Bolts | ASTM B166 T-Head Bolts |
| Incoloy 800 Wing Screw | ASTM B166 Foundation Bolts |
| UNS N08800 Structural Bolts |
Available Grades of Nickel Alloy Fasteners
| Nickel Alloy 200 Fasteners | Nickel Alloy 201 Fasteners |
| Monel 400 Fasteners | Monel K500 Fasteners |
| Inconel 600 Fasteners | Inconel 601 Fasteners |
| Inconel 625 Fasteners | Incoloy 800 Fasteners |
| Inconel 825 Fasteners | Alloy 20 Fasteners |
| Hastelloy C276 Fasteners | Titanium Fasteners |
| Copper Nickel Fasteners |
Available Types of Incoloy 800 Nuts
| 800 Incoloy Hex Nuts | Incoloy 800 Dome Nuts | UNS N08800 Hex Machine Screw Nuts |
| 800 Incoloy Hex Lock Nuts Nylon Insert | Incoloy 800 Hex Jam Nuts | UNS N08800 Hex Jam Nylon Lock Nuts |
| 800 Incoloy Heavy Hex Nuts | Incoloy 800 Wing Nuts | UNS N08800 Cap Nuts |
| 800 Incoloy Acorn Nuts | Incoloy 800 Square Nuts | UNS N08800 K-Lock Nuts |
| 800 Incoloy Prevailing Torque Lock Nuts | Incoloy 800 Top Lock Nuts | UNS N08800 Two-Way Reversible Lock Nuts |
| 800 Incoloy Pin-Lock Nuts | Incoloy 800 T-Nuts | UNS N08800 Coupling Nuts |
| 800 Incoloy T-Slot Nuts | Incoloy 800 Castle Nuts | UNS N08800 Knurled Nuts |
Available Types of UNS N08800 Bolt
| 800 Incoloy Eye Bolts | Incoloy 800 Allen Bolts | UNS N08800 Hex Head Bolts |
| 800 Incoloy Hanger Bolts | Incoloy 800 Carriage Bolts | UNS N08800 Jack Bolts |
| 800 Incoloy Square Head Bolts | Incoloy 800 Lag Bolts | UNS N08800 U Bolts |
| 800 Incoloy Elevator Bolts | Incoloy 800 Turned Eye Bolts | UNS N08800 Hex Flange Bolts |
| 800 Incoloy Structural Bolts | Incoloy 800 Step Bolts | UNS N08800 Square Head Machine Bolts |
| 800 Incoloy Plow Bolts | Incoloy 800 Metric Bolts | UNS N08800 Hex Tap Bolts |
| 800 Incoloy Hex Machine Bolts | Incoloy 800 Shoulder Eye Bolts | UNS N08800 Hex Bolts |
Available Types of Incoloy 800 Screw
| 800 Incoloy Self Drilling Screw | Incoloy 800 Self Tapping Screw | UNS N08800 Thread Rolling Screw |
| 800 Incoloy Thread Cutting Screw | Incoloy 800 Machine Screw | UNS N08800 Concrete Screw |
| 800 Incoloy Roofing Screw | Incoloy 800 Drywall Screw | UNS N08800 Particle Board Screw |
| 800 Incoloy Chipboard Screw | Incoloy 800 Construction Screws | UNS N08800 Coach Screws |
| 800 Incoloy Lag Screws | Incoloy 800 Wood Screw | UNS N08800 Euro Screw |
| 800 Incoloy Collated Screw | Incoloy 800 Furniture Screw | UNS N08800 Sems Screw |
| 800 Incoloy AISI 1018 Phillips Head Screw | Incoloy 800 Set Screws | UNS N08800 Thumb Screws |
Available Types of 800 Incoloy Washer
| 800 Incoloy Flat Washers | Incoloy 800 Finishing Washers | UNS N08800 Tab Washers |
| 800 Incoloy Conical Washers | Incoloy 800 Special Washers | UNS N08800 Belleville Washers |
| 800 Incoloy Bonded Sealing Washers | Incoloy 800 Countersunk Finishing Washers | UNS N08800 Dock Washers |
| 800 Incoloy Fender Washers | Incoloy 800 Lock Washers | UNS N08800 Neoprene Washers |
| 800 Incoloy Square Bevel Washers | Incoloy 800 Star Washers | UNS N08800 Spring Washers |
| 800 Incoloy Plain Washers | Incoloy 800 Hex Washers | UNS N08800 Wave Washers |
| 800 Incoloy Crank Washers | Incoloy 800 Square Washers | UNS N08800 Star Lock Washers |
Incoloy 800 Fasteners Applications
| Off-Shore Oil Drilling Companies | Power Generation |
| Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals |
| Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers |
| Condensers | Pulp & Paper Industry |
Recent Export Deliveries
🇸🇦
Saudi Aramco Total
Al Jubail, Saudi Arabia
304 SS Round Bars, 50mm OD, ASTM A276
Delivered in 7 days
🇺🇸
Hess Corporation
New York City, USA
SS 304 Hex Bars, 40mm A/F, Cold Drawn
Delivered in 14 days
🇬🇧
Shell PLC
London, United Kingdom
304 SS Flat Bars, 100×20mm, Bright Finish
Delivered in 14 days
🇦🇪
ADNOC
Abu Dhabi, UAE
304 SS Square Bars, 40mm, Forged Grade
Delivered in 5 days
🇿🇦
Sasol Limited
Johannesburg, South Africa
SS 304 Hollow Bars, 80mm OD × 20mm wall
Delivered in 21 days
🇩🇪
BASF SE
Ludwigshafen, Germany
304 SS Round Bars 25–100mm, EN 10204 3.2
Delivered in 18 days
Latest Prices of Incoloy Fasteners
Multinox INC offers Incoloy Fasteners at one of the most competitive prices in India. Request the latest Incoloy Fasteners Pricelist using the contact form here.
