Certified Dealer & Exporter of Jindal ASTM A249 Stainless Steel Welded Tube, A249 Jindal SS Welded Tube, Jindal A249 SS EFW Tube, SS Welded Heat Exchanger Tube, SS Welded Boiler Tubes Supplier in India
ASME SA 249 Jindal SS 304 Welded Tube, Jindal A249 304L SS Welded Tubes, A249 316 Stainless Steel Jindal Welded Tubes, A249 SS 316L / 316Ti EFW Tubes Stockists & Supplier in India

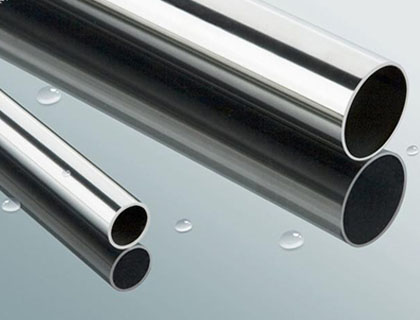

Multinox Inc is one of the most prominent dealer and exporter of Jindal ASTM A249 Stainless Steel Welded Tubes in a wide range of grades and standard sizes. The offered range of high-quality ASTM A249 Stainless Steel Tubes primarily consists of the austenitic grades of stainless steel including 304, 304, 316, 316L, 316Ti with the hot finish, cold finish, bright annealed, polished, annealed and pickled, passivated, stress relieved finish.
We are a top supplier in both nominal-wall-thickness welded tubes and heavily cold worked welded tubes manufactured using high-grade stainless steel material with all major grade. We supply and stock these Jindal A249 welded tubes from 1/2” up to 24” in all grade. These A249 steel tubes are widely used in applications such as a boiler, superheater, heat exchanger, or condenser tubes.
Jindal A249 SS Welded Round Tube, A249 SS Welded Heat Exchanger Tubes, A249 SS Condenser Tubes, A249 SS Square Tube Dealer, A249 SS Welded Hollow Tubes Exporter, A249 SS Rectangular Tubes, A249 SS Welded Polished Tube Distributors
Our high-quality Jindal ASTM A249 stainless steel tubes come in various shapes like round, square, rectangular, hollow and other shapes in order to meet all the needs of our worldwide clientele. We offer A249 Steel Jindal Welded Tubes at an affordable price. Contact us today for further assistance.
Specifications for ASTM A249 Jindal SS Welded Tubes
Product |
Welded Stainless Steel Tubes (Heat Exchanger, Condenser & LP / HP Heater U Tubes) |
Specifications |
ASTM A249 |
Grades |
304, 304L, 316, 316L |
Diameter |
12.7 - 102 MM |
Thickness |
0.5 - 5 MM |
Length |
Straight Lenghts upto 30 meters |
Chemical Composition of Jindal ASTM A249 SS Welded Tubes
SS |
304 |
304N |
304LN |
Ni |
8 – 11 |
8 – 11 |
8 – 11 |
Fe |
Balance |
Cr |
18 – 20 |
18 – 20 |
18 – 20 |
C |
0.08 max |
0.08 max |
0.035 max |
Si |
0.75 max |
0.75 max |
0.75 max |
Mn |
2 max |
2 max |
2 max |
P |
0.040 max |
0.040 max |
0.040 max |
S |
0.030 max |
0.030 max |
0.030 max |
N |
- |
0.10 – 0.16 |
0.10 – 0.16 |
Equivalent Grades of ASTM A249 Jindal Welded Tubes
AISI |
304 / 304H / 304L |
UNS |
S30400 / S30409 / S30403 |
Werkstoff Nr. |
1.4301 / 1.4306 |
Mechanical Properties of ASTM A249 Jindal Steel Welded Tubes
Density |
8.0 g/cm3 |
Melting Point |
1400 °C (2550 °F) |
Tensile Strength |
Psi – 75000 , MPa – 515 |
Yield Strength (0.2%Offset) |
Psi – 30000 , MPa – 205 |
Elongation |
35 % |
Testing Facilities of ASTM A249 Stainless Steel Tubes
Destructive Testing Facilities |
Non Destructive Testing Facilities |
Our in-house testing laboratory is accredited by NABL |
Physical Testing |
Laboratory Spectrometer & Portable Spectrometer |
Flattenining Test |
Positive Material Identification (PMI) Test |
Tension Test |
Micro Structure Examination Test / Analysis |
Flaring Test |
Ferrite Number Test |
Flange Test |
Online O D Measurements |
Reverse Bend Test |
Weight Measurement for Chemical Analysis |
Transverse Tesnsion Test |
Online Eddy Current Test |
Transverse Guide Bend Test |
Ultrasonic Test for Flaw Detection |
Impact Test at Controlled Temperature |
Portable U T Tester for Thickness Measurement |
|
Realtime Radiography Tests |
|
X- Ray Test - Film Radiography |
|
Film Reviewer |
|
Surface Roughness |
|
Videoscopy |
|
Microscopes with Pohotograph Facility |
|
Residual Stress Test |
|
Hydrotest - Straight Tube and 'U' Bend Tubes |
|
Air under Water Test - Straight length up to 30 Meter |
|
Air under Water Test - for U Bends 15 Meter |
Other Tests |
Intercrystalline Corrosion Test in accordance with ASTM A 262 practice, Type A,B & E |
Pitting Corriosion Test in accordance with ASTM A G48A |
Hardness Test |
Die Penetrate Test |
Chloride Contamination Test |
Water Quality Testing Facility |
Acid Bath Analysis Test |
Availability of ASTM / ASME SA 249 Stainless Steel Welded Tubes
- ASTM A249 304 Stainless Steel Welded Tubes
- ASTM A249 304L Stainless Steel Welded Tubes
- ASTM A249 316 Stainless Steel Welded Tubes
- ASTM A249 316L Stainless Steel Welded Tubes
- ASTM A249 316Ti Stainless Steel Welded Tubes
Latest Prices of Jindal A249 Stainless Steel Tubes
Multinox INC offers ASTM A249 SS Welded Tubes at one of the most competitive prices in India. Request the latest ASTM A249 SS Welded Tubes Pricelist using the contact form here.
Available Types of Jindal ASTM A249 SS Welded Tubes |
ASTM A249 Welded Tube |
SS ASTM A249 Welded Tube |
ASTM A249 Stainless Steel Welded Tube |
A249 Welded Tube |
Stainless steel A249 Welded Tube |
ASTM A249 SS Welded Tubes |
ASTM A249 Round Tube |
SS ASTM A249 Round Tube |
ASTM A249 Stainless Steel Round Tube |
A249 Round Tube |
Stainless steel A312M Round Tube |
ASTM A249 SS Welded Round Tubes |
ASTM A249 Heavily Cold Worked Austenitic SS Tubes |
SS ASTM A249 Heavily Cold Worked Austenitic Tubes |
ASTM A249 Stainless Steel Heavily Cold Worked Austenitic Tubes |
ASTM A249 Stainless Steel Tube |
A249 Heavily Cold Worked Austenitic SS Tubes |
Stainless Steel A312M Heavily Cold Worked Austenitic Tubes |
ASTM A249 SS Welded Tubes Applications |
Nuclear, Thermal and Solar Power Plants |
Refinery and Petrochemicals |
Oil and Gas |
Chemicals and Fertilizers |
Process Industries |
Defense |
Atomic Energy and Aerospace |
Pulp and Paper |
Automobile |
Cryogenic Services |
Pharmaceuticals |
Railways |
